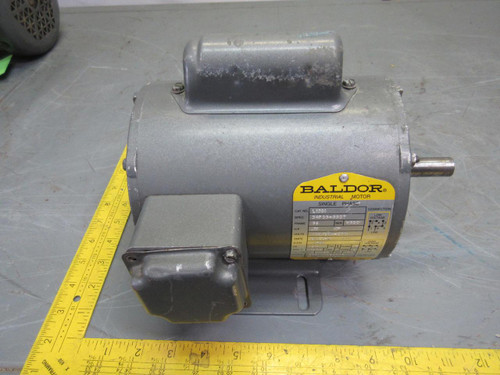

BALDOR RL1323A 1/2 HP AC MOTOR. FRAME 56

Technical Specifications

• Output: 0.5 hp
• Phase: 1
• Synchronous Speed1,800 rpm
• Frequency60 Hz
• Voltage230 V
• 115 V
• EnclosureOPEN
• Frame MaterialSteel
• Frame56
• XP Class and GroupNONE
• XP DivisionNot Applicable
• BrandBaldor-Reliance
• Agency ApprovalsCSA
• UR
• Ambient Temperature40 °C
• Auxillary BoxNo Auxillary Box
• Auxillary Box Lead TerminationNone
• Base IndicatorResilient
• Bearing Grease TypePOLYREX EM (-20F +300F)
• BlowerNone
• Current8.0 A @ 115 V
• 4.0 A @ 230 V
• Design CodeN
• Drip CoverNo Drip Cover
• Duty RatingCONT
• Efficiency @ 100% Load62.0%
• Electrically Isolated BearingNo electrically isolated
• Feedback DeviceNo feedback
• Front Face CodeResilient Mount
• Front Shaft IndicatorNone
• Heater IndicatorNo heater
• High Voltage Full Load Amps4.0 A
• Insulation ClassB
• Inverter CodeNot inverter
• KVA CodeJ
• Lifting LugsNo Lifting Lugs
• Locked Bearing IndicatorNo Locked Bearing
• Motor Lead ExitTerminal Panel
• Motor Lead Quantity/Wire Size6 @ 18 AWG
• Motor Lead TerminationFlying Leads
• Motor StandardsNEMA
• Motor Type3416L
• Number of Poles4
• Overall Length10.97 in
• Power Factor71
• Product FamilyGeneral Purpose
• Pulley End Bearing TypeBall Bearing
• Pulley Face CodeResilient Mount
• Pulley Shaft IndicatorStandard
• Rodent ScreenNo Rodent Screen
• Service Factor1.00
• Shaft Diameter0.625 in
• Shaft Extension LocationPulley End
• Shaft Ground IndicatorNo Shaft Grounding
• Shaft RotationReversible: Connected Standard
• Shaft Slinger IndicatorNo Slinger
• Speed1,725 rpm
• Speed CodeSingle Speed
• Starting MethodDOL
• Thermal Device - BearingNone
• Thermal Device - WindingNone
• Vibration Sensor IndicatorNo Vibration Sensor
• Winding Thermal 1Automatic Thermal Overload
• Winding Thermal 1 LocationSB
