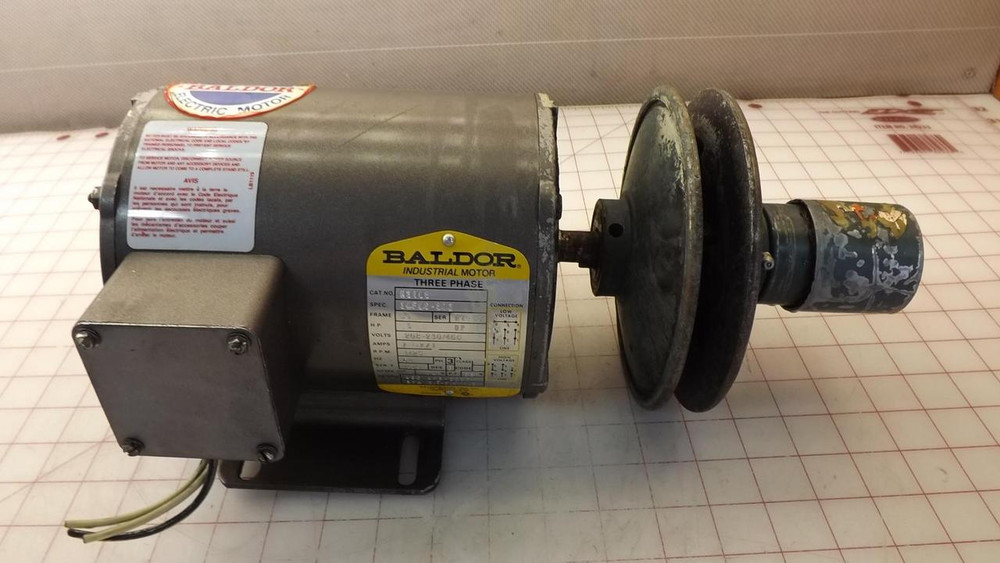

BALDOR M3108 1/2 HP AC MOTOR FRAME 56

Technical Specification's

• Enclosure: ODP

• Frame: 56

• Frame Material: STEEL

• Frequency: 60 Hz

• Output @ Frequency.500 HP @ 60 HZ

• Phase: 3

• Synchronous Speed @ Frequency1800 RPM @ 60 HZ

• Voltage @ Freqeuncy460.0 V @ 60 HZ

• 230.0 V @ 60 HZ

• XP DivisionNOT APPLICABLE

• Agency ApprovalsCSA

• UR

• Ambient Temperature40 °C

• Auxillary BoxNO AUXILLARY BOX

• Auxillary Box Lead TerminationNONE

• Base IndicatorRIGID

• Bearing Grease TypePOLYREX EM (-20F +300F)

• BlowerNONE

• Current @ Voltage1.000 A @ 460.0 V

• 2.000 A @ 230.0 V

• 2.500 A @ 208.0 V

• Design CodeB

• Drip CoverNO DRIP COVER

• Duty RatingCONT

• Efficiency @ 100% Load74.0 %

• Electrically Isolated BearingNO ELECTRICALLY ISOLATED

• Feedback DeviceNO FEEDBACK

• High Voltage Full Load Amps1.0 a

• Front Face CodeSTANDARD

• Front Shaft IndicatorNONE

• Heater IndicatorNO HEATER

• Insulation ClassB

• Inverter CodeNOT INVERTER

• KVA CodeL

• Lifting LugsNO LIFTING LUGS

• Locked Bearing IndicatorNO LOCKED BEARING

• Motor Lead ExitKO BOX

• Motor Lead TerminationFLYING LEADS

• Motor Lead Quantity/Wire Size9 @ 18 AWG

• Motor Type3416M

• Mounting ArrangementF1

• Number of Poles4

• Overall Length9.50 IN

• Power Factor63

• Product FamilyGENERAL PURPOSE

• Pulley End Bearing TypeBALL BEARING

• Pulley Face CodeSTANDARD

• Pulley Shaft IndicatorSTANDARD

• Rodent ScreenNO RODENT SCREEN

• RoHS StatusROHS COMPLIANT

• Service Factor1.25

• Shaft Diameter0.625 IN

• Shaft Extension LocationPULLEY END

• Shaft Ground IndicatorNO SHAFT GROUNDING

• Shaft RotationREVERSIBLE

• Shaft Slinger IndicatorNO SLINGER

• Speed1725 rpm

• Speed CodeSINGLE SPEED

• Motor StandardsNEMA

• Starting MethodDOL

• Thermal Device - BearingNONE

• Thermal Device - WindingNONE

• Vibration Sensor IndicatorNO VIBRATION SENSOR

• Winding Thermal 1NONE

• Winding Thermal 2NONE
