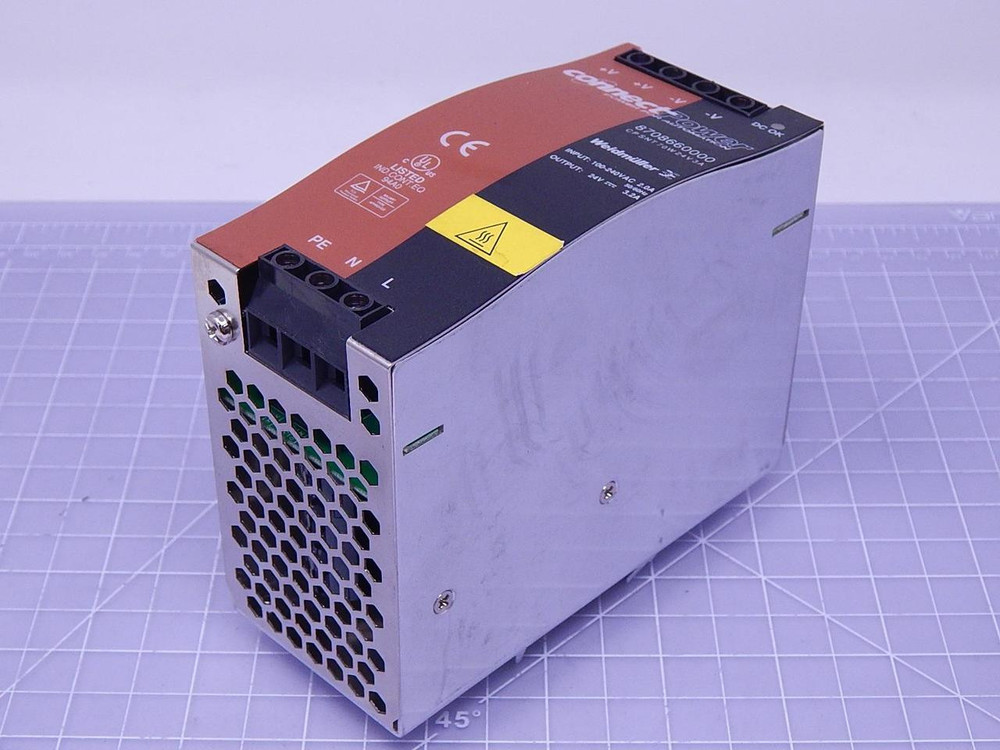

WEIDMULLER CP SNT 70W 24V 3A POWER SUPPLY T114834

8708660000. Input: Connection range AWG 26-12 / 0.13 to 4.0 mm² Connection system Screw connection DC input voltage range 80...370 V DC Input current 2 A @ 100...240 V AC Input frequency 50/ 60 Hz Input fuse Fusible link 2.5 A (T) / 250 V Input fuse (internal) Yes Input voltage (voltage mode input) 85...264 V AC / 110...370 V DC Recommended back-up fuse 3 - 5 A Char. C, circuit breaker Surge protection Varistor Wire connection method Screw connection, Output: Connection range AWG 26-12 / 0.13 to 4.0 mm² Control at 10...100% load <2% Control at input voltage 0.5% Mains failure bridge-over time 10 ms @ 115 V AC / 20 ms @ 230 V AC Max. capacitance at output 40000 µF Max. residual ripple < 100 mVPP / bandwidth 20 MHz Output current 3 A Output power 72 W Output voltage 24 V Output voltage 24...28 V (adjustable via potentiometer) Output voltage type DC Overload protection 105 %..130 % Iconst of max. output load; automatic reset Parallel connection option Recommended with diode module Status relay / CO contact 250 V AC (max. 30 V DC) / 1 A Surge protection 29...34 V Wire connection method Screw connection
