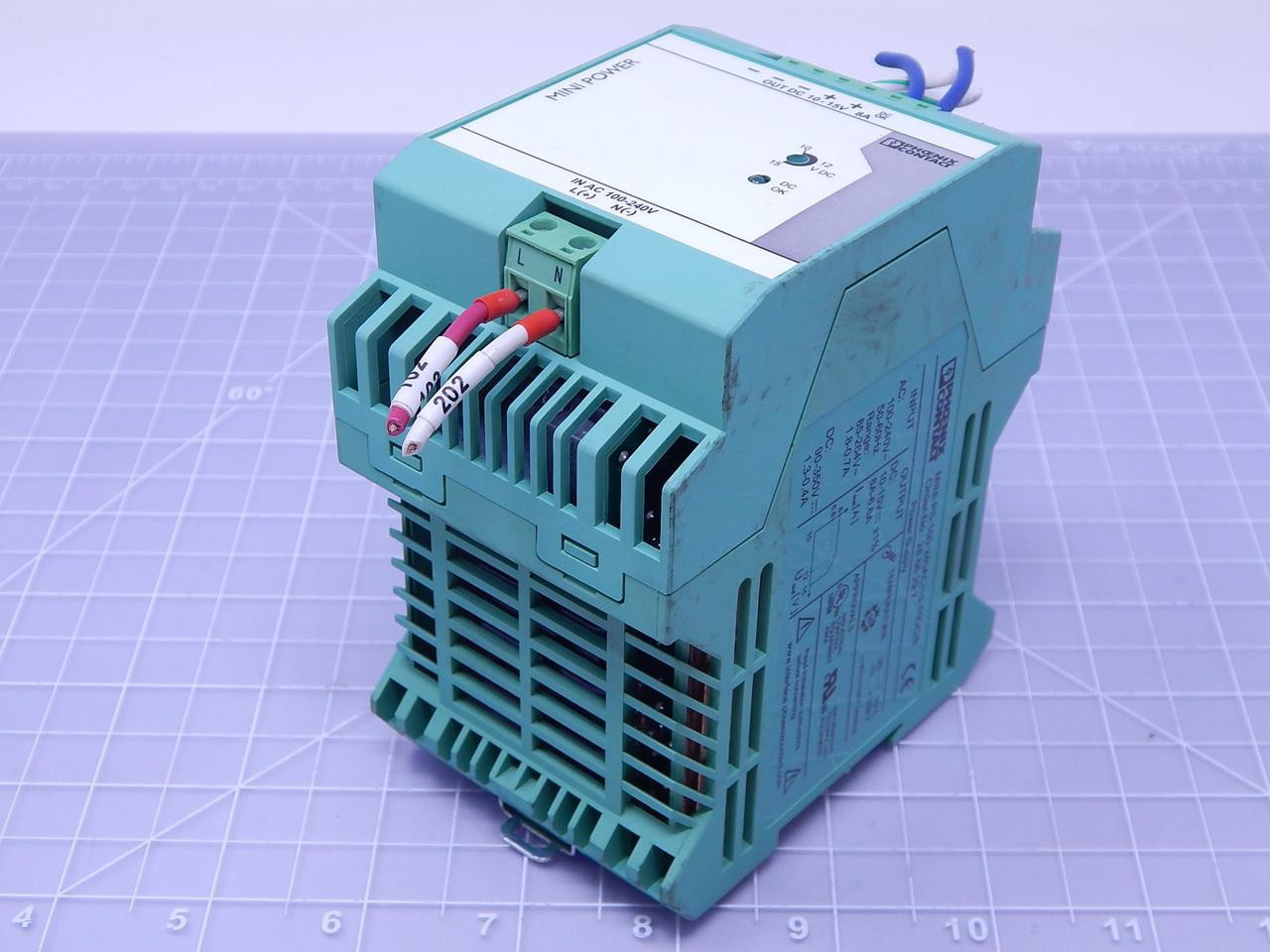

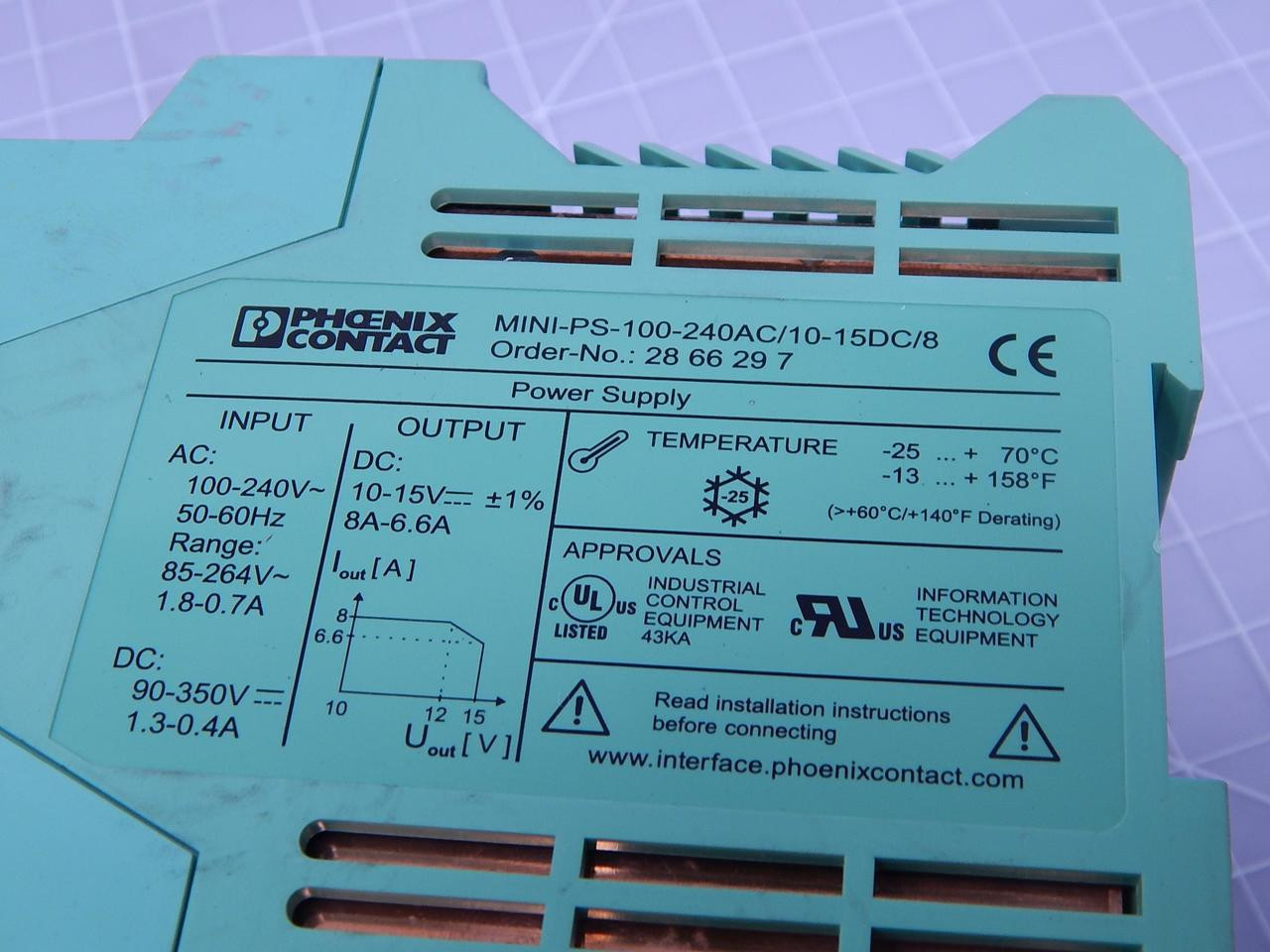

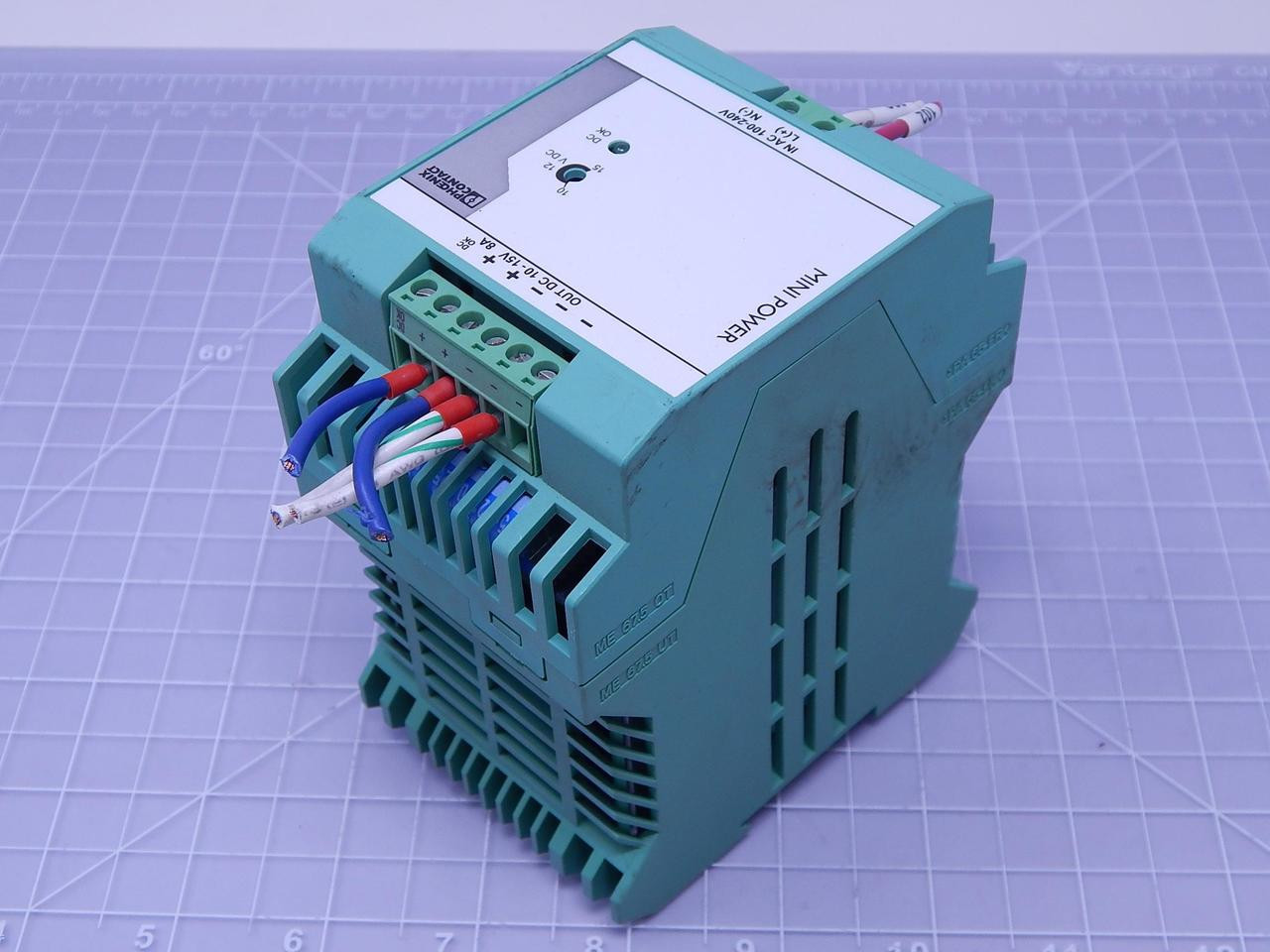

PHOENIX CONTACT MINI-PS-100-240AC/10-15DC/8 POWER SUPPLY T113992

Input data: Nominal input voltage range 100 V AC ... 240 V AC Input voltage range 85 V AC ... 264 V AC 90 V DC ... 350 V DC AC frequency range 45 Hz ... 65 Hz Current consumption 1.3 A (120 V AC) 0.8 A (230 V AC) 1.3 A (90 V DC) 0.4 A (350 V DC) Nominal power consumption 109.1 W Inrush surge current < 15 A (typical) Mains buffering > 20 ms (120 V AC) > 20 ms (230 V AC) Input fuse 3.15 A (slow-blow, internal) Choice of suitable circuit breakers 6 A ... 16 A output data: Nominal output voltage 12 V DC ±1 % 10 V DC ±1 % 15 V DC ±1 % Setting range of the output voltage (USet) 10 V DC ... 15 V DC (> 12 V DC, constant capacity restricted) Nominal output current (IN) 8 A (-25 °C ... 60 °C) POWER BOOST (IBoost) 6.6 A (-25°C ... 40°C permanent ) Derating 60 °C ... 70 °C (2.5%/K) Connection in parallel Yes, for assembling redundant systems and increasing efficiency Connection in series yes Residual ripple < 40 mVPP (20 MHz) Output power 100 W Typical response time < 0.4 s Peak switching voltages nominal load < 100 mVPP (20 MHz) Maximum power dissipation in no-load condition < 2.5 W Power loss nominal load max. < 12 W
