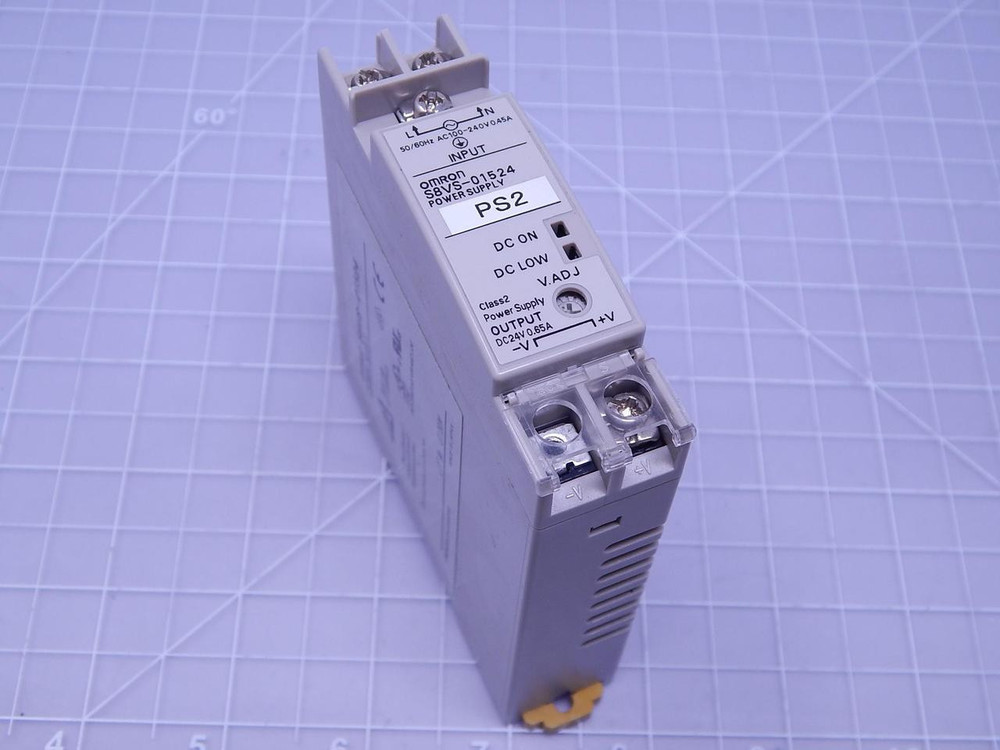

OMRON S8VS-01524 POWER SUPPLY T112808

$14.99

SKU:: T112808
MPN:: S8VS-01524
Weight:: 2 LBS
Dims:: 5 × 5 × 2 (in)

In stock, ships from Texas & NDA orders go out same day - 2 PM cutoffUsed - Good Condition

Current Stock: 1

Quantity:

Ships from El Paso, TXMost orders ship the same day
30-day guaranteeBuy with confidence
Talk to a real person915-603-5444 · 8–5 M–F MT
Need quantity?

Description

Power rating 15 W, Efficiency 83% TYP. (at 100 VAC input) 80% TYP. (at 200 VAC input), Rated input voltage 100 to 240 VAC, Allowable input voltage variable range 85 to 264 VAC 80 to 370 VDC, Note at DC input The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC)., Frequency 50/60 Hz (47 to 450 Hz), Rated input curren 0.34 A TYP. (at 100 VAC input) 0.22 A TYP. (at 200 VAC input), Leakage current 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input), Inrush current 14 A TYP. (at 100 VAC input) 28 A TYP. (at 200 VAC input), Output voltage 24 VDC, Output voltage variable range -10 to +15% (With V. ADJ), Ripple 60 mV max. (Under the rated I/O conditions.), Static input variation influence 0.5% max. at 85 to 264 VAC input, 100% load, Static load variation influence 1.5% max. at rated input, 0 to 100% load, Ambient temperature variation influence 0.05 %/℃ max., Rated output current 0.65 A, Start up time 600 ms TYP. (at 100 VAC input) 400 ms TYP. (at 200 VAC input), Hold time 28 ms TYP. (at 100 VAC input) 134 ms TYP. (at 200 VAC input)
