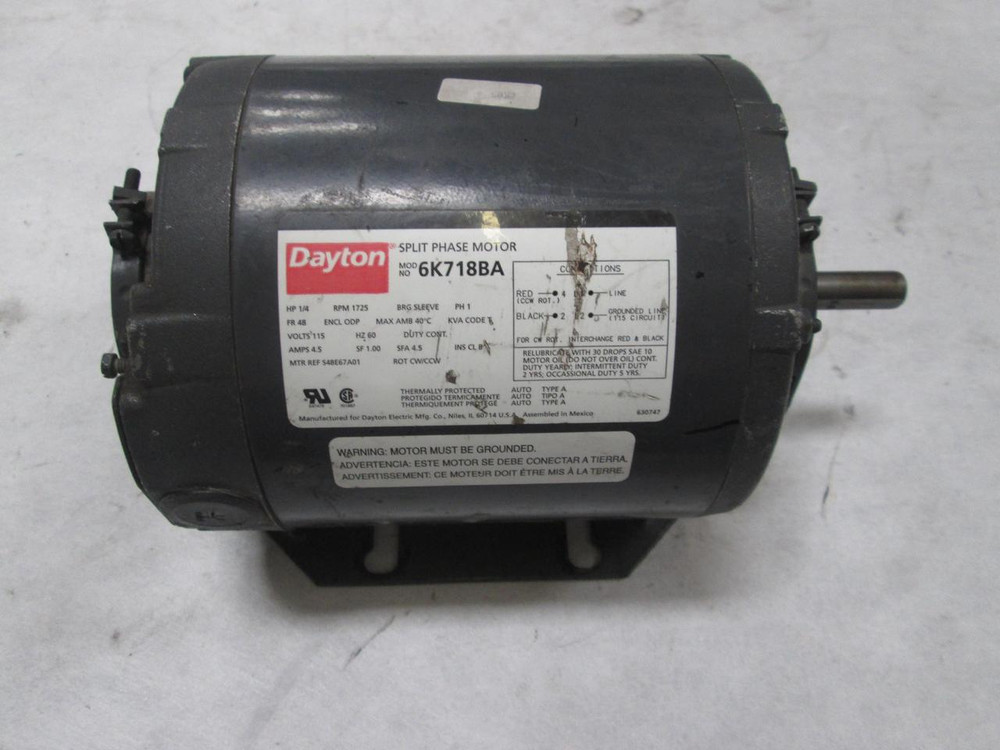

DAYTON 6K718BA 1/4 HP AC SPLIT PHASE MOTOR FRAME 48Z

Technical Specs

• ItemGeneral Purpose Motor
• Motor ApplicationGeneral Application
• Motor DesignSplit-Phase
• Motor Enclosure DesignOpen Dripproof
• HP1/4
• Nameplate RPM1725
• Frame48Z
• Voltage115
• Hz60
• Phase1
• Full Load Amps5.3
• No. of Speeds1
• Motor Mounting TypeCradle Base
• Motor Thermal ProtectionAuto
• Ins. ClassB

• Motor Service Factor1.35
• Motor BearingsBall
• Frame MaterialRolled Steel
• Max. Ambient Temp.40 Degrees C
• Motor Shaft RotationCW/CCW
• Shaft Dia.1/2"
• Shaft Length1-7/8"
• Length Less Shaft7-15/16"
• Overall Length9-13/16"
• Motor Shaft DesignFlat
• RPM Range1701-1800
• StandardsUL (E47479), CSA (156060)
• DutyContinuous
• Manufacturers Warranty Length1 yr.
• RPM Group1701-1800
