Baldor

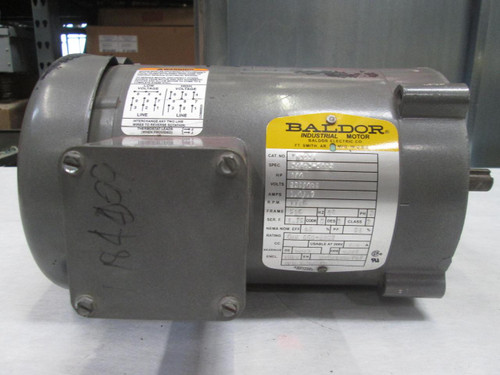

BALDOR VM3531 1/4 HP AC MOTOR FRAME: 56C
$99.00
- SKU:
- T54866
- MPN:
- VM3531
- Weight:
- 30 LBS
- Dims:
- 13 × 10 × 10 (in)
In stock, ships from Texas & NDA orders go out same day - 2 PM cutoffRefurbished
Current Stock: 2
- Ships from El Paso, TXMost orders ship the same day
- 30-day guaranteeBuy with confidence
- Talk to a real person915-603-5444 · 8–5 M–F MT
- Need quantity?
Description
Technical Specification's
- Output: 0.250 hp
- Phase: 3
- Synchronous Speed 1,200 rpm
- Frequency 60 Hz
- Voltage: 230 V
- 460 V
- Enclosure: TEFC
- Frame Material: Steel
- Frame: 56C
- XP Class and GroupNONE
- XP DivisionNot Applicable
- BrandBaldor-Reliance
- Agency ApprovalsCSA
- UR
- Ambient Temperature40 °C
- Auxillary BoxNo Auxillary Box
- Auxillary Box Lead TerminationNone
- Base IndicatorNo Mounting
- Bearing Grease TypePOLYREX EM (-20F +300F)
- BlowerNone
- Current1.6 A @ 208 V
- 1.4 A @ 230 V
- 0.7 A @ 460 V
- Design CodeB
- Drip CoverNo Drip Cover
- Duty RatingCONT
- Efficiency @ 100% Load68.0%
- Electrically Isolated BearingNo electrically isolated
- Feedback DeviceNo feedback
- Front Face CodeStandard
- Front Shaft IndicatorNone
- Heater IndicatorNo heater
- High Voltage Full Load Amps0.7 A
- Insulation ClassB
- Inverter CodeNot inverter
- KVA CodeK
- Lifting LugsNo Lifting Lugs
- Locked Bearing IndicatorLocked Bearing
- Motor Lead ExitKO Box
- Motor Lead Quantity/Wire Size9 @ 18 AWG
- Motor Lead TerminationFlying Leads
- Motor StandardsNEMA
- Motor Type3411M
- Number of Poles6
- Overall Length11.35 in
- Power Factor51
- Product FamilyGeneral Purpose
- Pulley End Bearing TypeBall Bearing
- Pulley Face CodeC-Face
- Pulley Shaft IndicatorStandard
- Rodent ScreenNo Rodent Screen
- RoHS StatusRoHS Compliant
- Service Factor1.35
- Shaft Diameter0.625 in
- Shaft Extension LocationPulley End
- Shaft Ground IndicatorNo Shaft Grounding
- Shaft RotationReversible
- Shaft Slinger IndicatorNo Slinger
- Speed1,140 rpm
- Speed CodeSingle Speed
- Starting MethodDOL
- Thermal Device - BearingNone
- Thermal Device - WindingNone
- Vibration Sensor IndicatorNo Vibration Sensor
Specifications
| Brand | Baldor |
|---|---|
| SKU | T54866 |
| MPN | VM3531 |
| Condition | Refurbished |
| HP | 1/4 HP |
| Frame | 56C |
Questions about this part, or need more than we have listed? or call 915-603-5444.
